Aluminium heat treatment
In today’s manufacturing market aluminium is increasingly becoming the material of choice being lighter, safer and
more sustainable. Manufacturers looking to replace existing materials with aluminium are needing new methodology to prove that new thermal processing of aluminium parts and products is done to specification, efficiently and economically. Helping with this need PhoenixTM offers a range of Temperature profiling solutions designed specifically for applications in the Aluminium manufacturing market.
PhoenixTM System – Aluminium HTS06

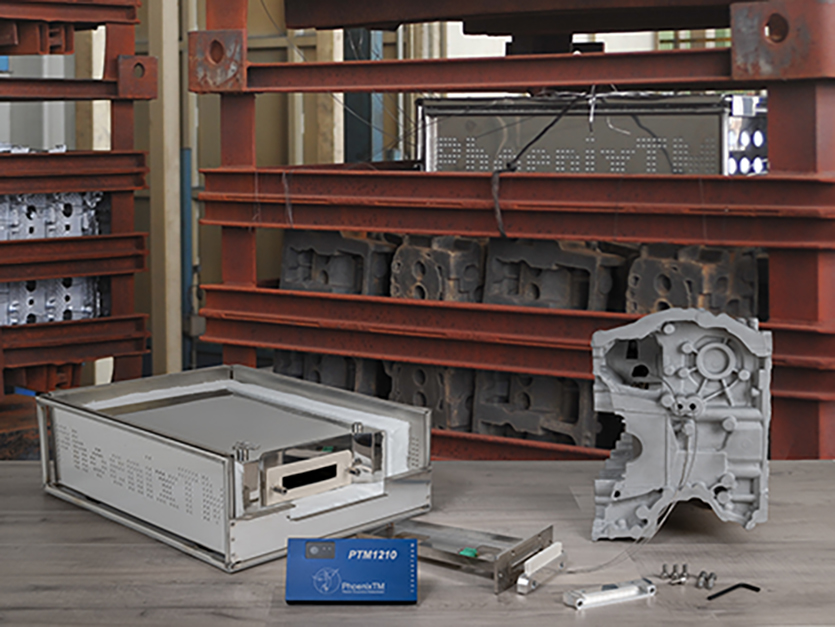

HTS06 Aluminium solution treatment and age hardening (T6) processes
After casting, products such as road wheels, cylinder heads, brake callipers, etc. are strengthened by solution treatment and age hardening (T6). This involves heating the aluminium castings to a specified temperature, quenching in water, then reheating. The PhoenixTM HTS06 System has been developed specifically to monitor the entire T6 process.
PhoenixTM System – Aluminium HTS08
HTS08 Aluminium Brazing (CAB and Vacuum)
Used in the aluminium brazing industry where products such as radiators, condensers, heater cores, and oil coolers, etc. are manufactured, the HTS08 system has been developed to withstand the harsh conditions in CAB (controlled atmosphere brazing) furnaces where temperatures reach 600°C. This system consistently collects accurate temperature data from critical points around the product.
PhoenixTM System – Aluminium HTS57
HTS57 Aluminium Log Homogenization
After casting, aluminium logs are homogenised before being supplied to extrusion companies. The walking beam process is demanding not only due to the long durations (up to 13 hours at 580 °C but the fact that the profiling system has to rotate with the log and therefore needs to be the same form as the log with the same diameter or less. The PhoenixTM TS57 rotating cylindrical barrier design meets the demands of the process.
PhoenixTM System – Aluminium HTS27
TS27 Space Limiting Automated Rotary Furnaces
The HTS27 thermal barrier range has been developed to provide a compact system to operate in a high temperature process where clearance inside the furnace is limited. The barrier solution is perfect for modern robot loaded T6 rotary furnaces where either the system needs to be loaded by robot with the product being monitored or integrated within a test product.
